I2C Communication Between Arduino Unos
Jump to navigation
Jump to search
This page refers to using two Arduino Unos that can communicate to each other using I2C protocols.
Connection

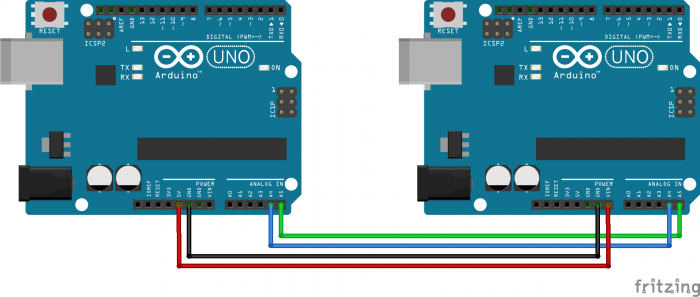

Connecting the Arduino Unos:
Pin Connection Table
| Arduino Uno 1 | Arduino Uno 2 |
|---|---|
5V
|
VIN
|
GND
|
GND
|
analogue pin A4
|
analogue pin A4
|
analogue pin A5
|
analogue pin A5
|
